2-way angle seat valve, G 1 ", red brass, normally closed Discount 25%

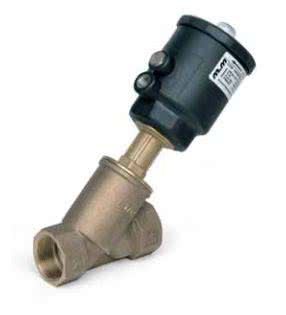

The image may differ from original
2-way angle seat valve, G 1 ", red brass, normally closed
2-way angle seat valve, G 1 ", red brass, normally closed

CG207CTY00 2-way angle seat valve, G 1 ", red brass, normally closed

2-way angle seat valve - NC


In the case of the inclined seat valve in NC version, the flow rate is above the seat. The control medium opens, the spring closes. The material of the main seal made of PTFE type TFM 1600 impresses with its lower porosity and permeability. It offers better homogeneity and elasticity, as well as better resistance to deformation under pressure. Likewise, a better chemical resistance is achieved.

about 2-3 weeks
Only %1 left
Article no
CG207CTY00
$ 233.71
  • Buy 3 for $ 222.02 each and save 5%
  • Buy 5 for $ 210.34 each and save 10%
  • Buy 10 for $ 198.65 each and save 15%

You need larger quantities? We would like to make you an individual offer. Request an offer now

SKU
Valve type
Flow direction
Control pressure Min (barg)
Control pressure Max (barg)
Price
DeliveryTime


BCG207CTY00
2-way normally closed - bidirectional
1 -> 2 / 2 -> 1
9.5/5.0
10.0
$ 255.94
about 2-3 weeks
BCG207LTY00
2-way normally closed - bidirectional
1 -> 2 / 2 -> 1
4.0/3.3
8.0
$ 363.12
about 2-3 weeks
BCG207STY00
2-way normally closed - bidirectional
1 -> 2 / 2 -> 1
6.5/3.8
10.0
$ 296.31
about 2-3 weeks
CG207CTY00
2-way normally closed
1 -> 2
6.5
10.0
$ 233.71
about 2-3 weeks
CG207LTY00
2-way normally closed
1 -> 2 (flow over seat)
2.0
8.0
$ 333.91
about 2-3 weeks
CG207STY00
2-way normally closed
1 -> 2 (flow over seat)
5.0
10.0
$ 269.18
about 2-3 weeks
DCG207CTY00
2-way normally open - bidirectional
1 -> 2 / 2 -> 1
8.5
10.0
$ 302.98
about 2-3 weeks
DCG207STY00
2-way double acting
1 ↔ 2
3.0
5.0
$ 311.66
about 2-3 weeks
RCG207CTY00
2-way normally open
2 -> 1
8.8
10.0
$ 267.72
about 2-3 weeks
RCG207LTY00
2-way normally open
2 ➔ 1 (flow under seat)
2.0
8.0
$ 395.18
about 2-3 weeks
RCG207STY00
2-way normally open
2 ➔ 1 (flow under seat)
5.5
10.0
$ 298.45
about 2-3 weeks
More Information
Article no CG207CTY00
Media aggressive Medien, Dampf, Luft, Öl, Wasser
Hersteller M&M international Srl
Pressure Max (bar) 16
Flow direction 1 -> 2
Kvs (l/m) 208
Material (fitting) Brass (CW617N EN 12165)
Material (control head) Polyamide PA6 (reinforced with fiberglass 30%)
Media temperature -10°C - +180°C
Orifice size (mm) 25.0
Position indicator Standard
Control pressure Max (barg) 10.0
Control pressure Min (barg) 6.5
Control head (diameter) 45
Control media Water | air | inert gases
Ambient temperature -10°C - +60°C
Valve type 2-way normally closed
Material Gunmetal
Connection size G 1"
Material (seal) PTFE type TFM 1600
