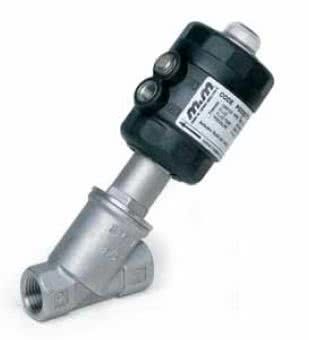

PG210STJ00 2-way angle seat valve, G 2 ", stainless steel, normally closed
2-way angle seat valve - NC
In the case of the inclined seat valve in NC version, the flow rate is above the seat. The control medium opens, the spring closes. The material of the main seal made of PTFE type TFM 1600 impresses with its lower porosity and permeability. It offers better homogeneity and elasticity, as well as better resistance to deformation under pressure. Likewise, a better chemical resistance is achieved.
about 2-3 weeks
Only %1 left
Article no
PG210STJ00
$ 576.10
| Article no | PG210STJ00 |
|---|---|
| Media | aggressive Medien, Dampf, Luft, Öl, Wasser |
| Hersteller | M&M international Srl |
| Pressure Max (bar) | 11 |
| Flow direction | 1 -> 2 (flow over seat) |
| Kvs (l/m) | 950 |
| Material (fitting) | AISI 316L |
| Material (seal) | PTFE type TFM 1600 |
| Material (control head) | Polyamide PA6 (reinforced with fiberglass 30%) |
| Media temperature | -10°C - +180°C |
| Orifice size (mm) | 50.0 |
| Position indicator | Standard |
| Control pressure Max (barg) | 10.0 |
| Control pressure Min (barg) | 8.0 |
| Control head (diameter) | 63 |
| Control media | Water | air | inert gases |
| Ambient temperature | -10°C - +60°C |
| Valve type | 2-way normally closed |
| Connection size | G 2" |
| Material | AISI 316L |
