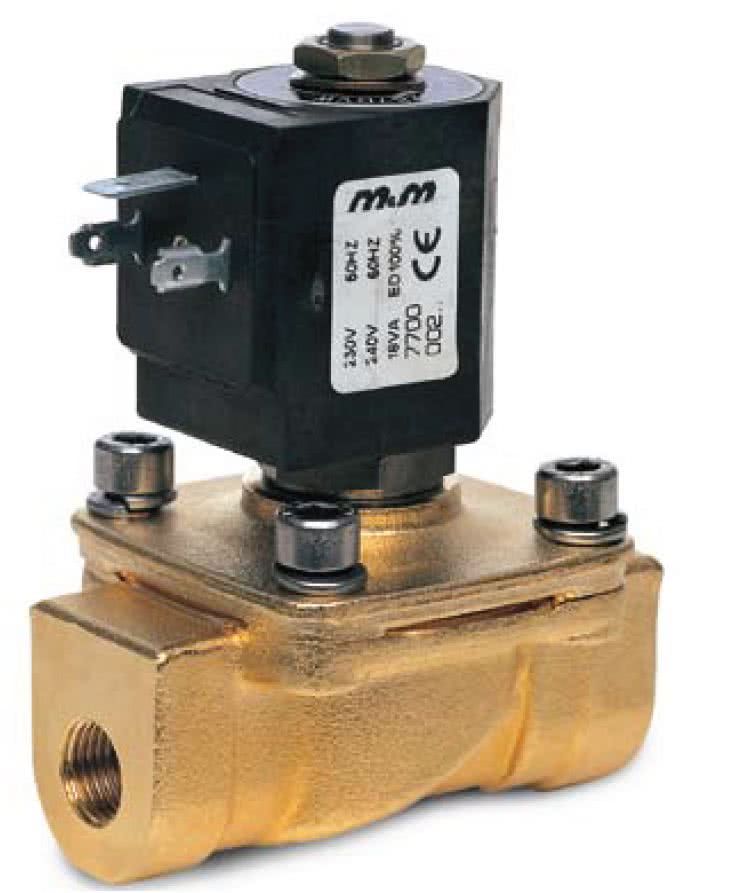

2-way solenoid valve, G 3/4 ", brass, normally closed - from 0 bar, positively controlled
The image may differ from original
2-way solenoid valve, G 3/4 ", brass, normally closed - from 0 bar, positively controlled
2-way solenoid valve, G 3/4 ", brass, normally closed - from 0 bar, positively controlled

D190DBW 2-way solenoid valve, G 3/4 ", brass, normally closed - from 0 bar, positively controlled

Positive-controlled solenoid valves 2/2 ways - NC


These solenoid valves are a combination of direct and servo controlled valves. The armature is mechanically connected to the diaphragm on which there is a discharge nozzle. At low pressure, the solenoid valve works like a direct acting valve. Full opening and full flow are not possible at low pressures. At higher pressures, the valve operates like a servo-controlled valve and full opening allows full flow. Average switching times 50 ÷ 500 ms.

about 2-3 weeks
Only %1 left
Article no
D190DBW

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no D190DBW
Media Luft, Öl, Wasser
Hersteller M&M international Srl
Kvs (l/m) 80
Material (anchor) Stainless steel
Media temperature -10°C - +90°C
Orifice size (mm) 15.0
Control type (solenoid valves) positively controlled
Ambient temperature -10°C - +50°C
Valve type 2-way normally closed
Material Brass
Connection size G 3/4"
Material (seal) NBR
Max. pressure voltage (AC) 16
