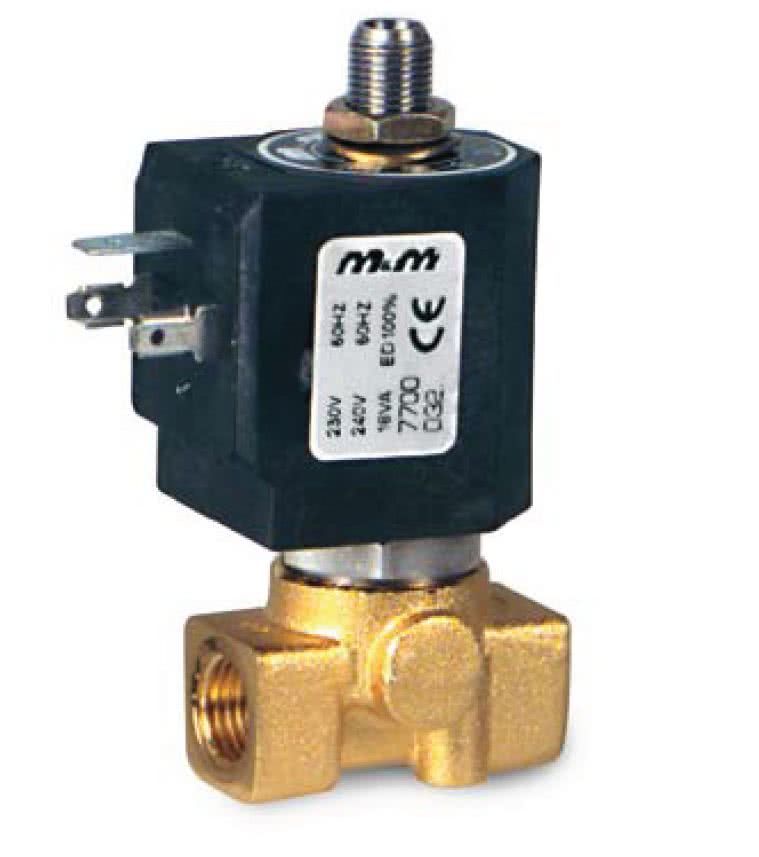

RD363CVC 3-way solenoid valve, G 1/4 ", brass, normally open, direct operated
Direct operated solenoid valves 2/2 way and 3/2 way - NC or NO
The magnetic coil generates an electric magnetic field which attracts the armature (NC version) or closes it (NO version). In the anchor is a pressed-in sealing cone. This presses directly on the valve seat and thus closes the valve. When the armature is raised, the flow of the medium is made possible. When the armature is lowered, the valve closes. The permissible pressure range depends on the tensile force of the solenoid. Average switching times 5 ÷ 25 ms.
about 2-3 weeks
Only %1 left
Article no
RD363CVC
$ 76.75
| Article no | RD363CVC |
|---|---|
| Hersteller | M&M international Srl |
| Media | Luft, Öl, Wasser |
| Kvs (l/m) | 1.3 |
| Material (anchor) | Stainless steel |
| Material (seal) | FKM |
| Media temperature | -10°C - +130°C |
| Orifice size (mm) | 1.5 |
| Control type (solenoid valves) | directly controlled |
| Ambient temperature | -10°C - +50°C |
| Valve type | 3-way normally open |
| Connection size | G 1/4" |
| Material | Brass |
| Max. pressure voltage (AC) | 18 |
| Max. pressure voltage (DC) | 18 |
