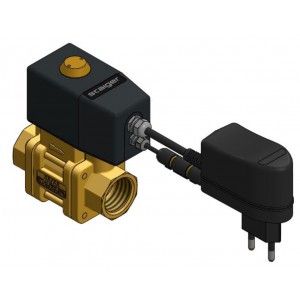

671-000-007 3/4 "water monitor 2/2-way - solenoid valve 20.0mm NW with 5.0m sensor cable MW 262 successor 671-000-064
After switching on the mains voltage, the electronics opens the solenoid valve. The sensor detects a water film from approx. 0.5 mm and sends a signal to the control electronics. The solenoid valve is closed and an audible alarm is triggered. This state is reset by interrupting the power supply.
on stock
Article no
671-000-007
$ 496.65
| Article no | 671-000-007 |
|---|---|
| Media | Luft, Wasser |
| Hersteller | Staiger |
| Pressure min (bar) | 0,5 |
| Material (anchor) | Stainless steel |
| Material (seal) | NBR |
| Orifice size (mm) | 20.0 |
| Voltage | 230V 50Hz - 240V 60Hz |
| Control type (solenoid valves) | positively controlled |
| Ambient temperature | 0°C - +50°C |
| Valve type | 2-way normally closed |
| Connection size | G 3/4" |
| Material | Brass |
| Max. pressure voltage (AC) | 10 |
