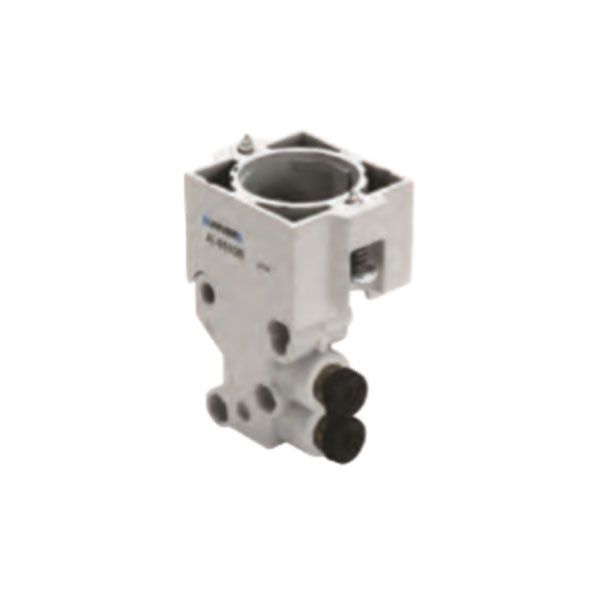

AI-9500B Universal Limit Switch Mechanical Operation 3/2 NC Panel Mount Hose Ø 4
Ambient temperature: -10 ÷ 90 ° C
Operating medium: filtered compressed air 50 μm, with or without lubrication
Switching system: seating system
More Information
Article no |
AI-9500B |
Hersteller |
Univer GmbH |
Connecting thread |
Tubing ⌀ 4 |
Material (seal) |
NBR |
Orifice size (mm) |
2.5 mm |
Valve type |
3/2 NC |
Connection size |
Ø4mm |
Ambient temperature: -10 ÷ 90 ° C
Operating medium: filtered compressed air 50 μm, with or without lubrication
Switching system: seating system
Max. Pressure: 10 bar
Connections: hose Ø 4
Nominal diameter (mm): 2.5
Nominal flow rate (Nl / min): 70
Valve body: Zamak
Seals: NBR
Slide: steel nickel plated
