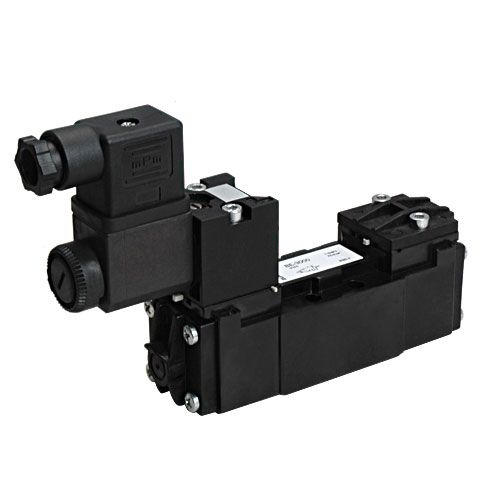

BE12-3020 Univer - Normventil Electric double-sided impulse mixing system size 1

Ambient temperature: -10 ÷ +50 ° C
Operating medium: filtered compressed air 50 μm (mixing system)
filtered compressed air 50 μm, dried or not (gate valve system)
Switching system: mixing / sliding system
Max. Pressure: 10 bar
Connections: Interface according to ISO 5599/1
Nominal diameter (mm): 8
Nominal flow rate (Nl / min): 1480
Valve body: acetal resin coated with zamak
Seals: nitrile rubber and polyurethane (mixing system), nitrile rubber (slider system)
Pilot Valve / Coil: Series AA / U3
Power consumption: 2.5 W (DC) - 5 VA (AC)
Voltage: 12V DC - 24V DC - 24V AC - 110V AC - 230V AC
Manual operation: with screw (impulse) 2 pcs (BE), recessed pushbutton 1 pc (BE12)
