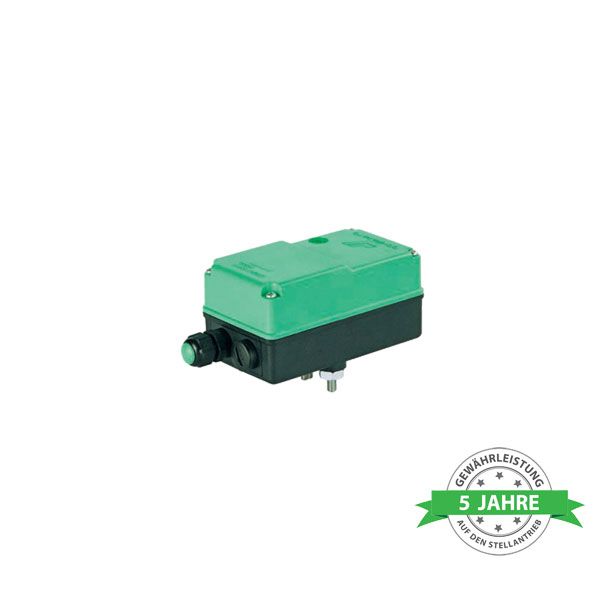

DY242Q Comparato - Diamant 2000 all-in-one, 5 Nm, 4 sec., IP 65, 24V 50 / 60Hz
24V AC All in One Actuator for 2-point control (2P) - On / Off & 3-point control (3P) control
5-year warranty on the actuator
with additional limit switch
5-year warranty on the actuator
with additional limit switch
on stock
Only %1 left
Article no
DY242Q
$ 98.25
Regular Price
$ 163.74
Discount 40%
| Article no | DY242Q |
|---|---|
| Hersteller | Comparato Nello Srl |
| Betriebszeit / Drehmoment (Nm) | 4sec / 5Nm |
| Cable length | 80cm |
| Ball valve (connection) | Threaded Connector |
| Motor (type) | Bi-directional, all in one |
| rotation | 90 ° |
| Voltage | 24V 50/60Hz |
| Connector (protection class) | IP 65 |
| Power consumption | 5.2 VA |
| Ambient temperature | -10°C - +50°C |
| Material | Polyamides/50% glass fiber - steam tested |
| Torque (Nm) | 5 |
