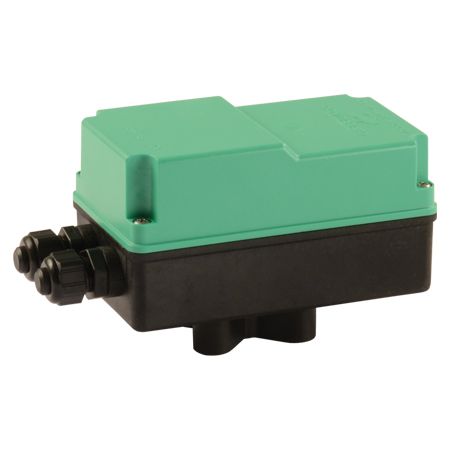

DY222G Comparato - Diamant 2000 All-One Actuator, 11 Nm, 35 sec., IP 65, 230V 50 / 60Hz
230V AC All in One Actuator for 2-point control (2P) - On / Off & 3-point control (3P) control
5-year warranty on the actuator
about 3-4 weeks
Only %1 left
Article no
DY222G
$ 136.46
Regular Price
$ 170.58
Discount 20%
| Article no | DY222G |
|---|---|
| Hersteller | Comparato Nello Srl |
| Cable length | 80cm |
| Ball valve (connection) | Threaded Connector, ISO 5211 |
| Motor (type) | Bi-directional, all in one |
| rotation | 90 ° |
| Connector (protection class) | IP 65 |
| Power consumption | 4.8 VA |
| Ambient temperature | -10°C - +50°C |
| Material | Polyamides/50% glass fiber - steam tested |
| Torque (Nm) | 11 |
| Voltage | 230V 50Hz - 240V 60Hz |
| Betriebszeit / Drehmoment (Nm) | 35sec/11Nm |
