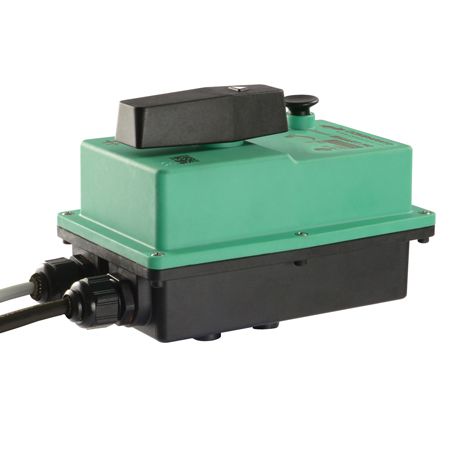

CSP24FM0A Comparato - compact Smart Pro Modbus, 22 Nm, IP 67
With Modbus and optional Wifi communication.
With 2 limit switches and position feedback.
3-year warranty on the actuator.
With emergency manual overwrite.
Optionally with Fail-Safe.
about 3-4 weeks
Only %1 left
$ 478.28
Regular Price
$ 597.86
Discount 20%
More Information
Article no |
CSP24FM0A |
Hersteller |
Comparato Nello Srl |
Ball valve (connection) |
Threaded Connector, ISO 5211 |
standard |
ISO 5211 |
rotation |
90 ° |
Voltage |
12-24V AC/DC |
Connector (protection class) |
IP 67 |
Torque (Nm) |
22 |
Fail Safe |
No |
Communication Type |
Modbus |
Programming of the actuator via APP (Wifi) or Modbus
Control
- 2- & 3-positions control
- 0-10V, 2-10V, 0-20mA or 4-20mA position control
- PWM1, PWM2
Operating times
- 15 sec., 30 sec., 60 sec. or 120 sec.
Functions
- Command reverse
- Dead band correction
- Operating angle correction
- Heating resistance activation
Monitoring
