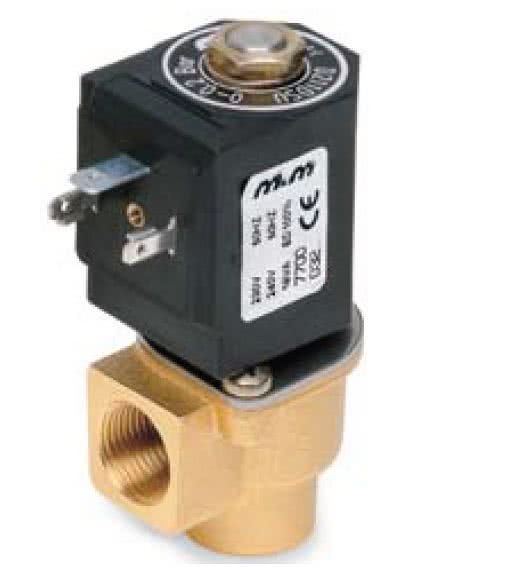

D211DSU 2-way diaphragm solenoid valve, G 3/8 ", brass, normally closed, direct operated
Direct operated solenoid valves 2/2 way and 3/2 way - NC or NO
The magnetic coil generates an electric magnetic field which attracts the armature (NC version) or closes it (NO version). In the anchor is a pressed-in sealing cone. This presses directly on the valve seat and thus closes the valve. When the armature is raised, the flow of the medium is made possible. When the armature is lowered, the valve closes. The permissible pressure range depends on the tensile force of the solenoid. Average switching times 5 ÷ 25 ms.
on stock
Article no
D211DSU
$ 68.28
- Buy 3 for $ 64.86 each and save 5%
- Buy 5 for $ 61.45 each and save 10%
- Buy 10 for $ 58.04 each and save 15%
| Article no | D211DSU |
|---|---|
| Media | Getränke, Wasser |
| Hersteller | M&M international Srl |
| Material (anchor) | Stainless steel |
| Material (seal) | FDA approved silicone |
| Media temperature | -10°C - +95°C |
| Orifice size (mm) | 11.0 |
| Control type (solenoid valves) | directly controlled |
| Ambient temperature | -10°C - +50°C |
| Valve type | 2-way normally closed |
| Connection size | G 3/8" |
| Material | Brass |
| Max. pressure voltage (AC) | 0.3 |
