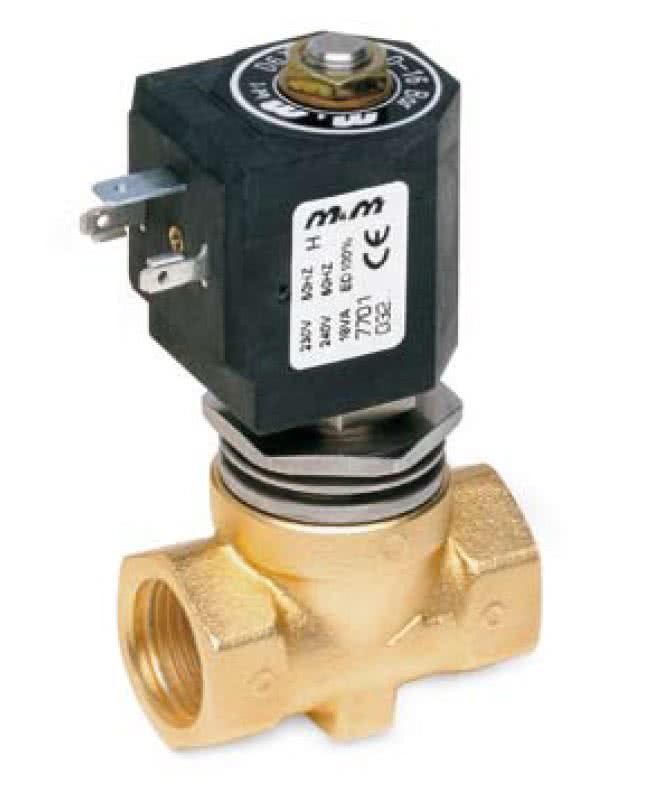

D635DTT 2-way piston valve, steam, G 3/8 ", brass, normally closed, servo-controlled
Servo controlled piston valves 2/2 ways and - NC
The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.
about 2-3 weeks
Article no
D635DTT
$ 111.42
- Buy 3 for $ 105.85 each and save 5%
- Buy 5 for $ 100.28 each and save 10%
- Buy 10 for $ 94.70 each and save 15%
| Article no | D635DTT |
|---|---|
| Pressure min (bar) | 0,3 |
| Hersteller | M&M international Srl |
| Media | Dampf, Wasser |
| Kvs (l/m) | 24 |
| Material (anchor) | Stainless steel |
| Material (seal) | PTFE |
| Media temperature | +80°C - +180°C |
| Orifice size (mm) | 10.0 |
| Control type (solenoid valves) | servo controlled |
| Ambient temperature | -10°C - +70°C |
| Valve type | 2-way normally closed |
| Connection size | G 3/8" |
| Material | Brass |
| Max. pressure voltage (AC) | 9 |
| Max. pressure voltage (DC) | 9 |
