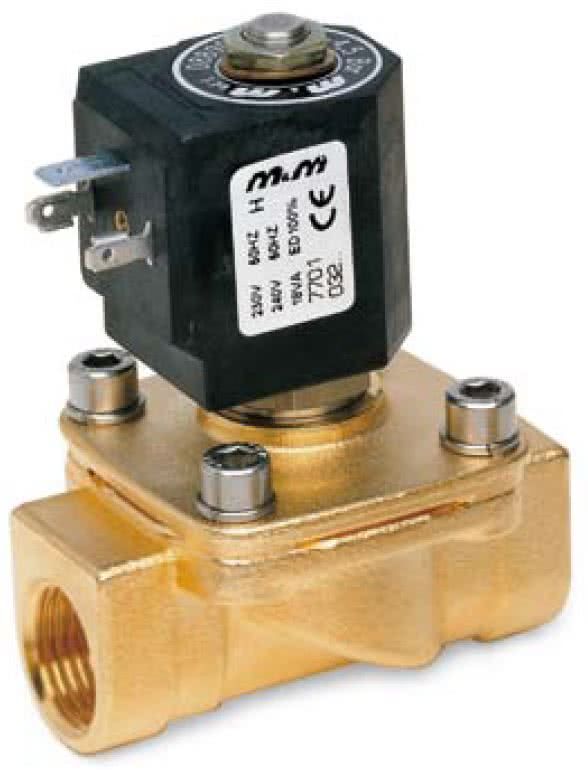

D887DPV 2-way solenoid valve, steam, G 1/4 ", brass, normally closed, servo-controlled
Servo-controlled solenoid valves 2/2 ways and - NC or NO
The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.
about 2-3 weeks
Article no
D887DPV
$ 89.79
- Buy 3 for $ 85.30 each and save 5%
- Buy 5 for $ 80.81 each and save 10%
- Buy 10 for $ 76.32 each and save 15%
| Article no | D887DPV |
|---|---|
| Media | Dampf, Heißwasser |
| Hersteller | M&M international Srl |
| Pressure min (bar) | 0,3 |
| Kvs (l/m) | 35 |
| Material (anchor) | Stainless steel |
| Material (seal) | EPM PX 70/80 |
| Media temperature | -10°C - +150°C |
| Control type (solenoid valves) | servo controlled |
| Ambient temperature | -10°C - +70°C |
| Valve type | 2-way normally closed |
| Material | Brass |
| Orifice size (mm) | 11.5 |
| Connection size | G 1/4" |
| Max. pressure voltage (AC) | 4.5 |
| Max. pressure voltage (DC) | 4.5 |
