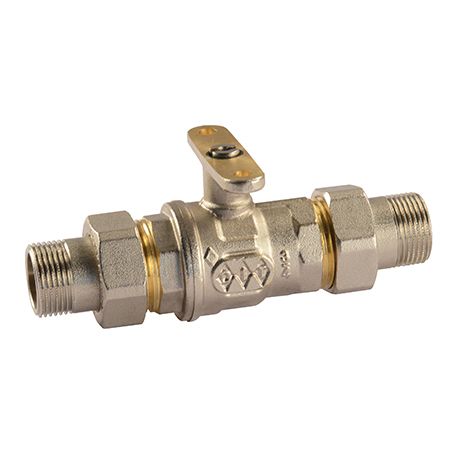

Comparato - Ball valve for Diamant PRO actuator, Full bore, DN15, PN16, 1/2 ", M / M
The image may differ from original

DC2A2A Comparato - Ball valve for Diamant PRO actuator, Full bore, DN15, PN16, 1/2 ", M / M

  • 230V 50/60Hz - 2- & 3-point 90° IP65 (DY222)
  • 110V 50/60Hz - 2- & 3-point 90° IP65 (DY212)
  • 24V 50/60Hz - 2- & 3-point IP65, 4sec., 90° (DY242)
  • 230V 50/60Hz - 2- & 3-point 90° IP67 (DY222P2)
  • 110V 50/60Hz - 2- & 3-point 90° IP67 (DY212P2)
  • 24V 50/60Hz - 2- & 3-point IP67 90° (DY242P2)
  • 12V DC / AC - 2- & 3-point IP67 90° (DY252PC)
  • 24V DC / AC - 2- & 3-point IP67 90° (DY242PC)

2-way G 1/2 "male / male
for Diamant PRO actuator
Brass valve body PN16
on stock
Article no
DC2A2A
Special Price $ 38.37 Regular Price $ 47.96 Discount 20%

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no DC2A2A
Hersteller Comparato Nello Srl
Ball valve (connection) Threaded Connector
Ball valve (type) 2-way ball valve male/male
Material (seal) PTFE
Connection size G 1/2"
Material Nickel-plated brass
Orifice size (mm) 15.0
operating pressure 0 - 16 bar
