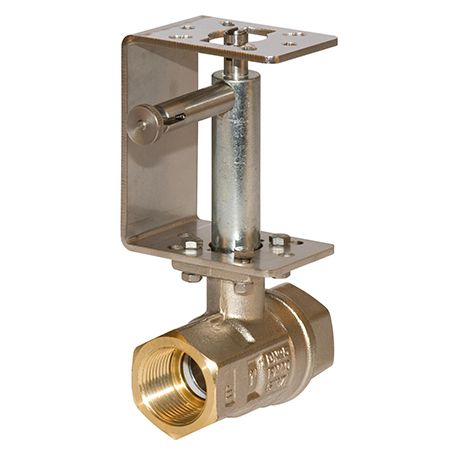

Comparato - Ball valve with spacer and stainless steel manual override for Diamant PRO actuator, full bore, DN20, PN40, 3/4 ", W / W
The image may differ from original
Datasheets:

DC2B2P5D2 Comparato - Ball valve with spacer and stainless steel manual override for Diamant PRO actuator, full bore, DN20, PN40, 3/4 ", W / W

  • 230V 50/60Hz - 2- & 3-point 90° IP65 (DY222)
  • 110V 50/60Hz - 2- & 3-point 90° IP65 (DY212)
  • 24V 50/60Hz - 2- & 3-Punkt IP65 90° (DY242)
  • 230V 50/60Hz - 2- & 3-point 90° IP67 (DY222P2)
  • 110V 50/60Hz - 2- & 3-point 90° IP67 (DY212P2)
  • 24V 50/60Hz - 2- & 3-point IP67 90° (DY242P2)
  • 12V DC / AC - 2- & 3-point IP67 90° (DY252PC)
  • 24V DC / AC - 2- & 3-point IP67 90° (DY242PC)

2-way G 3/4 "female / female
for Diamant PRO actuator
Brass valve body PN40
about 3-4 weeks
Article no
DC2B2P5D2
Special Price $ 93.72 Regular Price $ 117.15 Discount 20%

You need larger quantities? We would like to make you an individual offer. Request an offer now

Ask a question

More Information
Article no DC2B2P5D2
Hersteller Comparato Nello Srl
operating pressure 0 - 40 bar
Ball valve (connection) Threaded Connector
Ball valve (type) 2-way ball valve female/female
Material (seal) PTFE
Orifice size (mm) 15.0
Connection size G 3/4"
Material Nickel-plated brass
