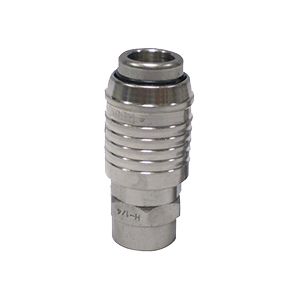

FLUID10NH1/4 Female Quick Coupling Connector DN 5.5
FLUID-10N: Compressed air FLUID-10N-LX: Compressed air FLUID-10N-X: Compressed air, water, grease, oils, mild acids, applications in oxidising or corrosive environments and fluids suitable with construction materials FLUID-10N-X-316: Compressed air, water, chemicals, applications in highly corrosive environments and fluids suitable with construction materials FLUID-10S: Compressed air,
Temperatur: Fluid-10N: NBR : -10°C ÷ 95°C, FKM : -20°C ÷ 205°C, FLuid-10S: NBR: -10°C ÷ 95°C,
Working pressure : 0-12 bar (suggested), 35 bar (max), Fluid-10S : 0-7 bar (suggested)
Outer diameter: 23.4
Connection thread female 1: G 1/4"
Temperatur: Fluid-10N: NBR : -10°C ÷ 95°C, FKM : -20°C ÷ 205°C, FLuid-10S: NBR: -10°C ÷ 95°C,
Working pressure : 0-12 bar (suggested), 35 bar (max), Fluid-10S : 0-7 bar (suggested)
Outer diameter: 23.4
Connection thread female 1: G 1/4"
about 2-3 weeks
Only %1 left
Article no
FLUID10NH1/4
$ 19.67
| Article no | FLUID10NH1/4 |
|---|---|
| Hersteller | Tierre Group |
| Series | Quick coupling connector stainless steel |
| Connection thread female 1 | G 1/4" |
| Material | Nickel-plated stainless steel |
| Outer diameter | 23.4 |
| Zertifizierung | REACH, RoHS3 |
