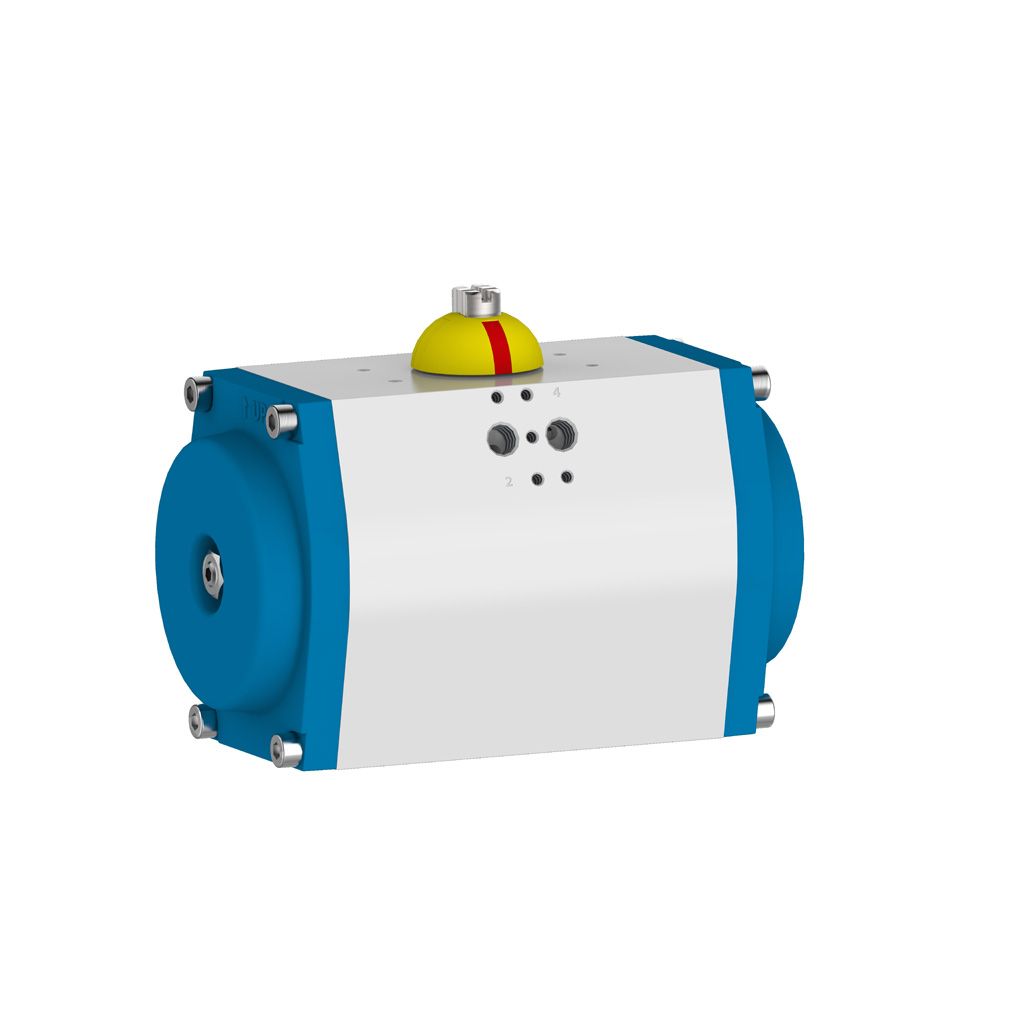

GTWB.110x90.DA.NP22A.F07/F10.000 110 GT pneumatic actuator - double action, drilling pattern F07/F10, end position adjustment on both sides, pinion NP22, CW-A
Series: 110
Angle of rotation: 90°
Pinion size: Octagonal 22mm (NP22)
End position adjustment: end position adjustment on both sides
Function: double action
Installation variant: CW direction of rotation parallel to the pipeline, clockwise closing/crosswise, counterclockwise closing
Drilling pattern: F07/F10
Temperature: -50 to 70° C
Angle of rotation: 90°
Pinion size: Octagonal 22mm (NP22)
End position adjustment: end position adjustment on both sides
Function: double action
Installation variant: CW direction of rotation parallel to the pipeline, clockwise closing/crosswise, counterclockwise closing
Drilling pattern: F07/F10
Temperature: -50 to 70° C
about 1-2 weeks
Only %1 left
Article no
GTWB.110x90.DA.NP22A.F07/F10.000
$ 195.08
| Article no | GTWB.110x90.DA.NP22A.F07/F10.000 |
|---|---|
| Hersteller | Rotork (GT Attuatori) |
| Series | GT-110 |
| Angle of rotation | 90 ° |
| Function | Double acting |
| Shaft protrusion | 30mm |
| Drilling pattern | F07/F10 |
| Zufuhr | Gefilterte Luft ISO 8573-1-5662 |
| Air supply | VDI/VDE 3845, NAMUR |
| Equipment | VDI/VDE 3845, NAMUR |
| Fitting interface | ISO 5211 |
| Valve shaft interface | ISO 5211 |
| Stroke adjustment | -5° to 5° from the 90° position |
| Housing material | Anodized aluminum AW 6063 |
| Material pinion | Carbon steel EN 11SMnPb3 chemically nickel-plated |
| Piston material | Die-cast aluminum UNI EN1706 |
| Cover material | Die-cast aluminum UNI EN1706, EN AC 46100, epoxy paint |
| Material spring cartridge | Carbon steel, epoxy paint |
| Pinion size | Octagonal 22mm (NP22) |
| Assembly variant | Direction of rotation CW parallel to the pipeline, clockwise closing / across, counterclockwise closing |
| Ambient temperature | -50 to 70°C |
| End position adjustment | End position adjustment on both sides |
