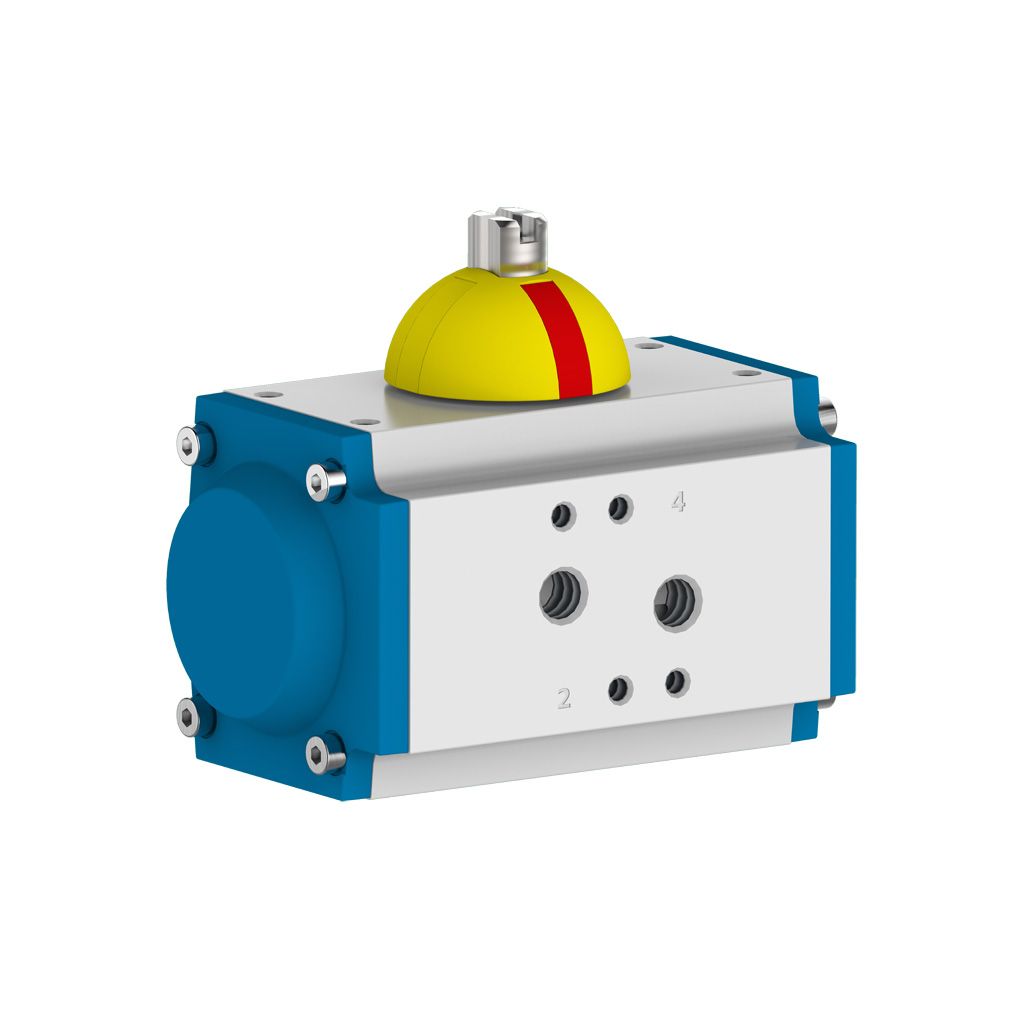

GTKB.44x90.DA.NP11A.F04.000 44 GT pneumatic actuator - double action, drilling pattern F04, one-sided end position adjustment, pinion NP11, CW-A
Series: 44
Angle of rotation: 90°
Pinion size: NP11
End position adjustment: one-sided end position adjustment
Function: double action
Installation variant: CW direction of rotation parallel to the pipeline, clockwise closing/crosswise, counterclockwise closing
Drilling pattern: F04
Temperature: -50 to 70° C
Angle of rotation: 90°
Pinion size: NP11
End position adjustment: one-sided end position adjustment
Function: double action
Installation variant: CW direction of rotation parallel to the pipeline, clockwise closing/crosswise, counterclockwise closing
Drilling pattern: F04
Temperature: -50 to 70° C
about 1-2 weeks
Only %1 left
Article no
GTKB.44x90.DA.NP11A.F04.000
$ 97.78
| Article no | GTKB.44x90.DA.NP11A.F04.000 |
|---|---|
| Hersteller | Rotork (GT Attuatori) |
| Series | GT-44 |
| Angle of rotation | 90 ° |
| Function | Double acting |
| Shaft protrusion | 30mm |
| Drilling pattern | F04 |
| Zufuhr | Gefilterte Luft ISO 8573-1-5662 |
| Air supply | VDI/VDE 3845, NAMUR |
| Equipment | VDI/VDE 3845, NAMUR |
| Fitting interface | ISO 5211 |
| Valve shaft interface | ISO 5211 |
| Stroke adjustment | -5° to 5° from the 90° position |
| Housing material | Anodized aluminum AW 6063 |
| Material pinion | Carbon steel EN 11SMnPb3 chemically nickel-plated |
| Piston material | Die-cast aluminum UNI EN1706 |
| Cover material | Die-cast aluminum UNI EN1706, EN AC 46100, epoxy paint |
| Material spring cartridge | Carbon steel, epoxy paint |
| Pinion size | Octagonal 11mm (NP11) |
| Assembly variant | Direction of rotation CW parallel to the pipeline, clockwise closing / across, counterclockwise closing |
| Ambient temperature | -50 to 70°C |
| End position adjustment | one-sided end position adjustment |
