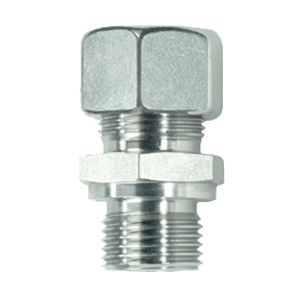

Connector with BSPP external thread
The image may differ from original

3720TRL186 Connector with BSPP external thread

For compressed air, oil and liquids suitable for building materials. Pipe locations, ogives and lock nuts are manufactured compliantly according to DIN 3870 – 3861,
Temperature: 20°C ÷ 80°C The temperature depends on the Pipe functions used,
Working pressure: Up to 60 bar Maximum working pressure depend on the properties of the pipe used
Tubing size: 6.0
Connection thread male 1: G 1/8"
  • REACH
  • ROHS2
about 2-3 weeks
Only %1 left
Article no
3720TRL186
$ 11.26

You need larger quantities? We would like to make you an individual offer. Request an offer now

More Information
Article no 3720TRL186
Hersteller Tierre Group
Series Compression ring connection stainless steel
Connection thread male 1 G 1/8"
Type Plug
Tubing size 6.0
Material Stainless steel INOX AISI 316 DIN 2353
Zertifizierung REACH, ROHS2
