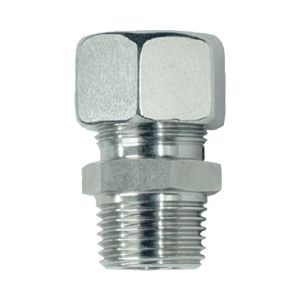

3700TRL186 Connector with BSPT male thread
For compressed air, oil and liquids suitable for building materials. Pipe locations, ogives and lock nuts are manufactured compliantly according to DIN 3870 – 3861,
Temperature: 20°C ÷ 80°C The temperature depends on the Pipe functions used,
Working pressure: Up to 60 bar Maximum working pressure depend on the properties of the pipe used
Tubing size: 6.0
Connection thread male 1: R 1/8"
Temperature: 20°C ÷ 80°C The temperature depends on the Pipe functions used,
Working pressure: Up to 60 bar Maximum working pressure depend on the properties of the pipe used
Tubing size: 6.0
Connection thread male 1: R 1/8"
about 2-3 weeks
Only %1 left
Article no
3700TRL186
$ 13.10
| Article no | 3700TRL186 |
|---|---|
| Hersteller | Tierre Group |
| Series | Compression ring connection stainless steel |
| Material | Stainless steel INOX AISI 316 DIN 2353 |
| Tubing size | 6.0 |
| Connection thread male 1 | R 1/8" |
| Zertifizierung | REACH, ROHS2 |
