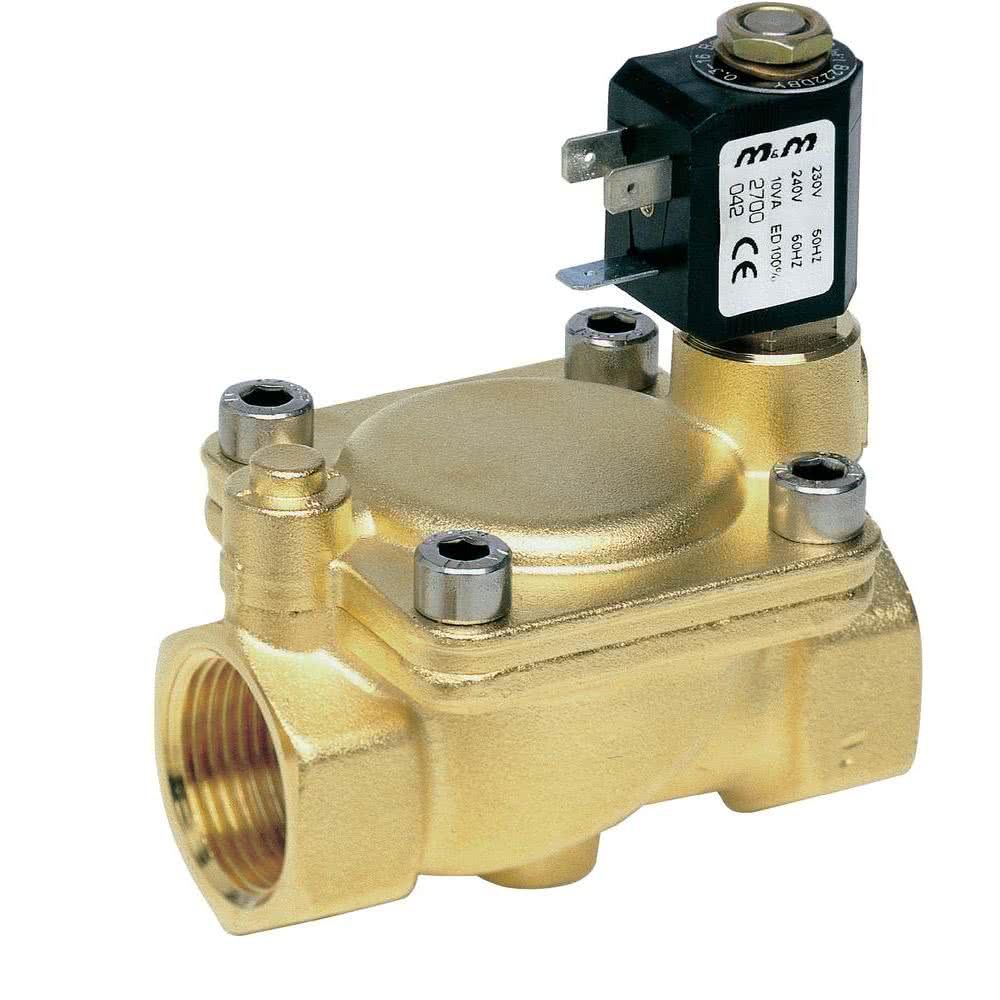

RB204DBZ 2-way solenoid valve, G 3/8 ", brass, normally open, servo-controlled
Servo-controlled solenoid valves 2/2 ways and - NC or NO
The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.
about 2-3 weeks
Article no
RB204DBZ
$ 102.51
- Buy 3 for $ 97.38 each and save 5%
- Buy 5 for $ 92.26 each and save 10%
- Buy 10 for $ 87.13 each and save 15%
| Article no | RB204DBZ |
|---|---|
| Media | Luft, Öl, Wasser |
| Hersteller | M&M international Srl |
| Pressure min (bar) | 0,3 |
| Kvs (l/m) | 55 |
| Material (anchor) | Stainless steel |
| Material (seal) | NBR |
| Media temperature | -10°C - +90°C |
| Orifice size (mm) | 13.0 |
| Control type (solenoid valves) | servo controlled |
| Ambient temperature | -10°C - +50°C |
| Valve type | 2-way normally open |
| Connection size | G 3/8" |
| Material | Brass |
| Max. pressure voltage (AC) | 16 |
| Max. pressure voltage (DC) | 16 |
