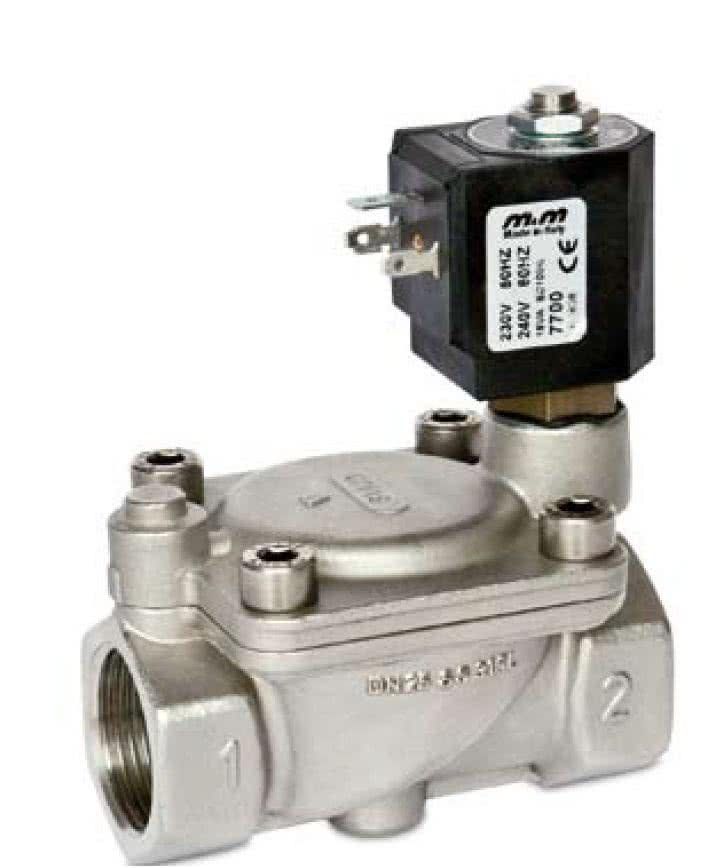

RD222DVYI 2-way solenoid valve, G 1 ", stainless steel, normally open, servo-controlled
Servo-controlled solenoid valves 2/2 ways and - NC or NO
The medium force is used to actuate the solenoid valve by a suitable complete pilot valve. Therefore, the pressure of the input medium must always be above a certain minimum pressure, which is indicated on the data sheets. With the same coil power as the direct-acting valves, these solenoid valves allow for greater flow rates and higher pressures. Average switching times 50 ÷ 500 ms.
about 2-3 weeks
Article no
RD222DVYI
$ 408.59
- Buy 3 for $ 388.16 each and save 5%
- Buy 5 for $ 367.73 each and save 10%
- Buy 10 for $ 347.30 each and save 15%
| Article no | RD222DVYI |
|---|---|
| Hersteller | M&M international Srl |
| Media | aggressive Medien, Luft, Öl, Wasser |
| Pressure min (bar) | 0,3 |
| Kvs (l/m) | 216 |
| Material (anchor) | Stainless steel |
| Material (seal) | FKM |
| Media temperature | -10°C - +130°C |
| Orifice size (mm) | 25.0 |
| Control type (solenoid valves) | servo controlled |
| Ambient temperature | -10°C - +50°C |
| Valve type | 2-way normally open |
| Connection size | G 1" |
| Material | AISI 316L |
| Max. pressure voltage (AC) | 16 |
| Max. pressure voltage (DC) | 16 |
