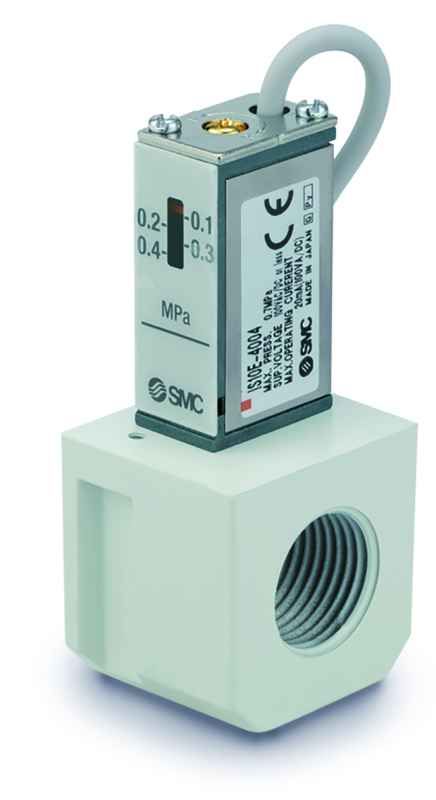

SMC Pneumatic - Pressure switch with end piece [IS10E]

The image may differ from original

Skip to the beginning of the images gallery

Datasheets:

AC-A-D_EU.pdf

IS10E-20F02-6L-A SMC Pneumatic - Pressure switch with end piece [IS10E]

Connecting thread

Construction size

Max operating pressure difference

Qty:

Medium: compressed air
Ambient and media temperature: -5 to 60 ° C (not frozen)
Test pressure: 1.0 MPa

coming soon

Only %1 left

Article no

IS10E-20F02-6L-A

$ 101.27

Qty:

You need larger quantities? We would like to make you an individual offer. Request an offer now

Ask a question

More Information

More Information
Article no	IS10E-20F02-6L-A
Hersteller	SMC
Connecting thread	G 1/4
Construction size	20

Details

Medium: compressed air
Ambient and media temperature: -5 to 60 ° C (not frozen)
Test pressure: 1.0 MPa
Max. Operating pressure: 0.7 MPa
Setting pressure range: 0.1 to 0.6 MPa
Hysteresis: max. 0.08 MPa
Contact configuration: 1a
Max. Contact capacity: 2 VA (AC), 2 W (DC)
Operating voltage: AC, DC: max. 100V
Max. Operating current: 12 V to 24 VAC, DC: 50 mA
48 VAC, DC: 40 mA
100 VAC, DC: 20 mA
Cable length: 3 m
