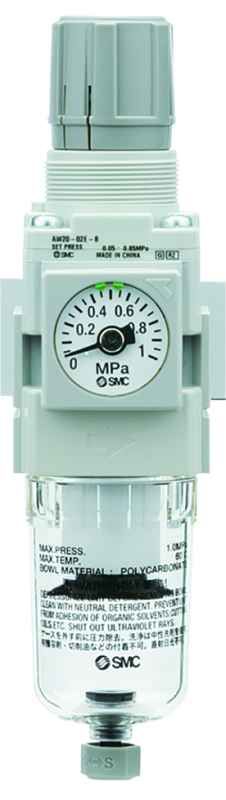

AW20K-F02-B SMC Pneumatics - Filter Controller [AW-B]
Medium: compressed air
Ambient and media temperature: -5 to 60 ° C (not frozen)
Test pressure: 1.5 MPa
More Information
Article no |
AW20K-F02-B |
Hersteller |
SMC |
Flow |
1700 |
Condensate drain |
manually |
Connecting thread |
G 1/4 |
Medium: compressed air
Ambient and media temperature: -5 to 60 ° C (not frozen)
Test pressure: 1.5 MPa
Max. Operating pressure: 1.0 MPa
Setting pressure range: 0.05 to 0.85 MPa
Nominal filtration capacity Filter controller [AW]: 5 μm
Tank Material (Standard) Filter Control [AW]: Polycarbonate
Container protection (standard) Filter regulator [AW]: polycarbonate
Regulator type: with secondary ventilation
Condensate drain Filter control [AW]: float-controlled, automatic
Pressure gauge
(if no rectangular built-in ananometer is used): G 1/8
NC: closed unconfirmed
